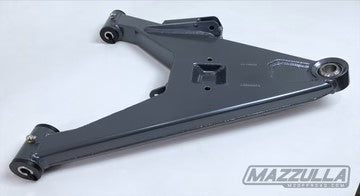

2007-2018 CHEVY/GMC 1500 LONG TRAVEL / MZS-C3-1A

2007-2018 CHEVY/GMC 1500 LONG TRAVEL / MZS-C3-1A

Mazzulla Offroad’s 2007-2018 GM 1500 long travel kit is designed to get the most suspension performance out of your 2 or 4 wheel drive truck while being completely bolt on. Our latest design features uniball pivots that can be adapted to any 2007-2018 GM 1500 truck using taper adapter pins to match spindles and arms to cast steel, stamped steel, and aluminum suspension types. This system is 3.5” wider per side and the wheel/tire are positioned to give maximum clearance to the firewall and recommended fiberglass fenders. The coilover shock is an OEM replacement that uses the factory upper mount and bar pin style lower mount and if additional dampening is needed we offer a weld on upper secondary mount that accepts a 2.5” or 3.0” bypass shock. This kit is perfect for anyone that wants to turn their stock ½ ton GM truck into a very capable offroad vehicle without a ton of fabrication or breaking the bank. Adapter pins, axles and shock mounts sold separately.

  • CAD designed and engineered
  • Manufactured in the USA
  • Machined billet aluminum upper control arms
  • Boxed plate construction
  • MIG welded
  • Dual shock design (shock mount sold separately)
  • 12" wheel travel
  • 100% bolt on - minor trimming required
  • Teflon lined 1" uniballs
  • Billet tie rod extensions
  • Machined Delrin bushings
  • Grade 8 zinc plated hardware
  • Counter sunk 17-4 stainless steel heat treated uniball spacers
  • Grade 8 hardware
  • Machined Delrin steering stops
  • Zerk fittings for convenient bushing maintenance
  • Powdercoat finish

Application:

  • Can be used with factory or aftermarket shock
  • Can fit up to 3.0" coilover and secondary bypass shock
  • Can be used with 2wd or 4wd suspension
  • 4wd application will need extended axle assemblies
Regular price $3,999.00 USD
